Product Detail

Model No.: YT-6600/6800/61000
Production Capacity: 500sets/year
Delivery Date: 30 working days
Specification: CE,ISO9001:2000
Patent Rights: CE,ISO9001:2000
Export Area: global
Means of Transport: Ocean
Packing: wooden packing
Brand Name: CHANGYIN
Function: print plastic film,paper,et...
Certificate: CE,ISO9001:2000

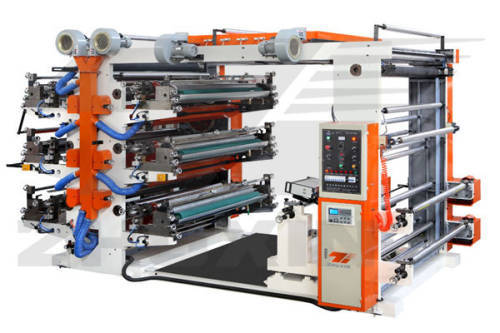

This machine is suitable for printing such packing materials as polyethylene,polypropylene bag,glass paper and roll paper,etc.

Performance and Characteristics:
This machine is suitable for printing such packing materials as polyethylene,polypropylene bag,glass paper and roll paper,etc.And it is a kind of ideal printing equipment for producing paper packing bag for food,supermarket handbag,vest bag and clothes bag,etc.

Main Technical Variables:
Model of Machine:YT-6600
Max.Width of Substrate:600mm
Max.Printing Width:560mm
Range of printing Length:191-914mm
Max.Diameter of web:ф450mm
Printing Speed:5-50m/min
Plate Thickness(bothside adhesive tape included):2.38mm
Total Power:13kw
Weight of Machine:3500kg
Overall Dimensions:3900×1660×2950mm

Model of Machine:YT-6800
Max.Width of Substrate:800mm
Max.Printing Width:760mm
Range of printing Length:191-914mm
Max.Diameter of web:ф450mm
Printing Speed:5-50m/min
Plate Thickness(bothside adhesive tape included):2.38mm
Total Power:15kw
Weight of Machine:4200kg
Overall Dimensions:3900×1860×2950mm

Model of Machine:YT-61000
Max.Width of Substrate:1000mm
Max.Printing Width:960mm
Range of printing Length:191-914mm
Max.Diameter of web:ф450mm
Printing Speed:5-50m/min
Plate Thickness(bothside adhesive tape included):2.38mm
Total Power:18kw
Weight of Machine:5000kg
Overall Dimensions:3900×2060×2950mm
