Product Detail

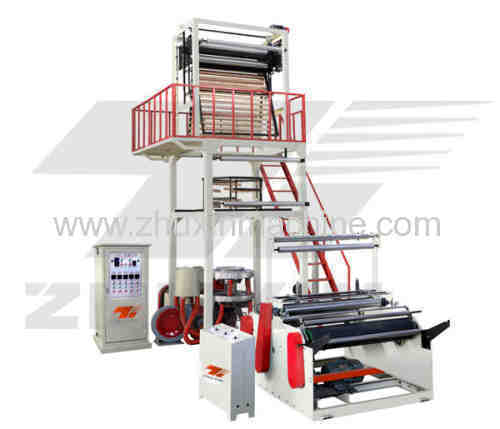

Model No.: SJ-H45/65

Production Capacity: 1000sets/year

Delivery Date: 30 working days

Shaft Design: Single

Function: to blow plastic film

Certificate: CE,ISO9001:2000

Means of Transport: Ocean

Packing: wooden case package

Plastic Type: PP/PE

Specification: CE,ISO9001:2000

Patent Rights: CE,ISO9001:2000

Export Area: global

Main Technical Variables:
Model:H45
Diameter of screw:45
Film width(mm):100-500

Performance and Characteristics:

It is used for blowing various plastic film of low density polyethylene(LDPE),high density polyene(HDPE)and linear low density polyethylene(LLDPE)etc.,Which are widely used for packing liquid,industrial products,garments and textile and printing lamination.etc..The cylinder and the screw stems of the extruder are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after nitroqen trea-tment and precision finishing.

The auxiliary machine has a platform working table formaking operation easy and is equipped with dubble stabilizing ring.Double-rolling and double-cutting coiling unit adoptstorque motor to keep proper tension and make even and roll-changing easy.

Main Technical Variables:

Model	SJ-H45	SJ-H50	SJ-H55	SJ-H65
Suitable material	HDPE LDPE LLDPE
Film width	100-500mm	300-600mm	400-800mm	600-1200mm
Film thickness(HD)	0.009-0.05mm	0.009-0.05mm	0.009-0.15mm	0.009-0.15mm
(LD)	0.02-0.15mm	0.02-0.15mm	0.03-0.15mm	0.03-0.15mm
Max. extrusion output(HD)	40kg/h	45kg/h	55kg/h	65kg/h
(LD)	45kg/h	50kg/h	60kg/h	70kg/h
Extruder
Screw diameter	45	50	55	65
Screw L/D length	28:1/30:1
Screw material	Sacm-645/38 Crmoala
Cylinder material	Sacm-645/38 Crmoala
Cylinder cooling	180x2	250x2	370x2	550x3
Driving motor	7.5kw	11kw	15kw	22kw
Temperature control	3	3	3	4
Average power-consume	10kw	12kw	18kw	30kw
Type of die
Die size (HD)	60/80	60/100	80/100	120/150
(LD)	100/120	120/150	180/200	220/250
Temperature control	3
Air ring	1
Air blower	1.5kw	2.2kw	3kw	4kw
Center steady stick	2
Take-up unit
Roller width	165X650	165X850	165X1100	165X1400
Effective width	500mm	600mm	800mm	1200mm
Height adjustable type	800mm
Take-up speed	10-100m/min	10-100m/min	10-80m/min	10-80m/min
Take-up motor	0.75kw	1.1kw	1.1kw	1.5kw
Winding unit
Type	Surface friction type
Winding motor	10N.m	10N.m	10N.m	16N.m
Winding speed	10-100m/min	10-100m/min	10-80m/min	10-80m/min
Outline diameter(LxWxH)	5.0x2.0x4.1m	5.0x2.2x4.5m	5.5x2.5x5.2m	5.8x2.8x6.3m
